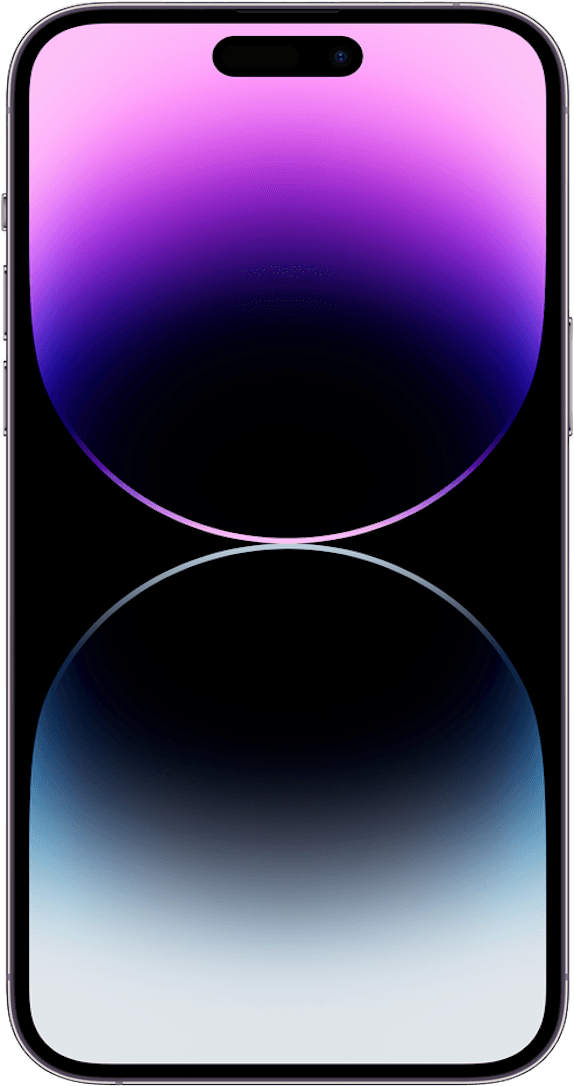

iPhone 14 Pro Max (Deep Purple)

The Apple iPhone 14 Pro Max 5G is a flagship smartphone that offers cutting-edge features and technology. Here's a detailed description of this impressive device:

Model: iPhone 14 Pro Max

Initial Release Operating System: iOS 16.0

Latest Release Operating System: iOS 17.0.1

Display:

• Screen Size: 6.69 inches (diagonal)
• Dimensions: 6.07 by 2.8 inches
• Technology: Super Retina XDR Display (all-screen OLED)
• Resolution: 2796 x 1290 pixels
• Pixel Density (ppi): 460
• Aspect Ratio: ~19.5:9
• Brightness:
  • Typical Max Brightness: 1,000 cd/m²
  • HDR Max Brightness: 1,600 cd/m²
  • Outdoor Max Brightness: 2,000 cd/m²
• Contrast Ratio (typical): 2,000,000:1
• Fingerprint-resistant oleophobic coating: Yes
• Full sRGB Display: Yes
• Wide Color Display (Display P3): Yes
• True Tone Display: Yes
• Night Shift: Yes
• ProMotion Display: Yes
• Always-On Display: Yes
• HDR Display: Yes
• HDR 10 Content: Yes
• Dolby Vision: With HDR
• Dynamic Island: Yes
• Taptic Haptic Touch: Yes

Processor:

• Chip: Apple A16 Bionic
• Technology Node: 4 nm (N4)
• Total Cores: 6
• High-Performance Cores: 2 x Everest
• Energy-Efficiency Cores: 4 x Sawtooth
• Clock Speed: 3.46 GHz
• Bit: 64-bit
• Graphics Processor: Sixth generation Apple designed 5-core GPU
• Neural Engine: Sixth generation Apple designed 16-core Neural Engine (17 TOPS)

Storage:

• Options: 128 GB, 256 GB, 512 GB, 1 TB
• Storage Type: NAND Flash driven by NVMe-based controller with PCIe connection

RAM:

• RAM: 6 GB
• RAM Type: LPDDR5 3200 MHz (51.2 GB/s)

Connectivity:

• Connector: 8-pin Lightning connector
• Wi-Fi: Wi-Fi 6 (802.11a/b/g/n/ac/ax)
• MIMO: Yes
• NFC: With Reader Mode in the background
• Express Cards: With Power Reserve
• Bluetooth: Bluetooth 5.3
• Ultra Wideband chip for spatial awareness: Yes
• Cellular:
  • GSM/EDGE/UMTS/HSPA+/DC-HSDPA/CDMA EV-DO Rev. A (some models)
  • Gigabit-class LTE
  • 5G (sub-6 GHz and mmWave in some models)
• VoLTE: Yes
• Assisted GPS: Precision Dual-frequency
• GLONASS/GNSS: Precision Dual-frequency
• BeiDou: Precision Dual-frequency
• SIM Card Form-Factor:
  • Dual SIM with one Nano-SIM and one eSIM (supports dual eSIM)
  • No physical SIM card form-factor in U.S. models
  • Dual Nano-SIM in Mainland China, Hong Kong, and Macau

Secure Authentication:

• Touch ID: No
• Face ID: Yes

Safety:

• Emergency SOS: Via Satellite (Certain countries only)
• Crash Detection: Yes

Sensors:

• LiDAR sensor: Yes
• Proximity sensor: Yes
• Three-axis gyro: High dynamic range gyro
• Accelerometer: High-g accelerometer
• Ambient Light Sensor: Yes
• Barometer: Yes

Rear Camera:

• Cameras:
  • 48 MP Main
  • 12 MP Ultra Wide
  • 12 MP 2x Telephoto (Enabled by Quad-pixel)
  • 12 MP 3x Telephoto
• Aperture:
  • f/1.78 (Wide and 2x Telephoto)
  • f/2.2 (Ultra Wide)
  • f/2.8 (3x Telephoto)
• Pixel Size for Wide camera: 1.22 μm (48 MP), 2.44 μm (Quad-pixel 12MP)
• Sensor Size for Main camera: 1/1.28"
• Optical Image Stabilization: Main, 2x Telephoto, and 3x Telephoto
• Second-generation sensor-shift optical image stabilization for the main and 2x telephoto camera
• Auto Image Stabilization: Yes
• Lens:
  • Seven-element lens (Main and 2x Telephoto)
  • Six-element lens (Ultra Wide and 3x Telephoto)
• Night Mode: Ultra Wide, Main, 2x Telephoto, 3x Telephoto, and Night Mode Portrait
• Deep Fusion: Ultra Wide, Main, 2x Telephoto, and 3x Telephoto
• Photonic Engine: Yes
• Apple ProRAW: Yes
• Macro mode: Yes
• Photographic Styles: Yes
• Optical Zoom: 0.5x, 1x, 2x, 3x
• Digital Zoom: Up to 15x
• Autofocus: 100% Focus Pixels (Ultra Wide, Main, and 2x Telephoto)
• With Focus Pixels (Telephoto)
• Panorama: Up to 63 MP
• Portrait Mode: With advanced bokeh and Depth Control
• Portrait Lighting: With six effects (Natural, Studio, Contour, Stage, Stage Mono, High‑Key Mono)
• Lens Cover: Sapphire crystal lens cover
• Burst Mode: Yes
• Flash: Adaptive True Tone flash
• Live Photos: Yes
• Wide Color Capture: Yes
• HDR for photos: Smart HDR 4

Video Recording:

• 4K at 24 fps, 25 fps, 30 fps, or 60 fps
• 1080p HD at 25 fps, 30 fps, or 60 fps
• Cinematic video recording with shallow depth of field: 4K at 25 fps or 30 fps
• Extended Dynamic Range Video: 60 fps
• Dolby Vision HDR Video: 60 fps
• ProRes Video: 1080p at 30 fps for 128 GB storage, 4K at 30 fps for 256 GB storage and above
• Optical Image Stabilization for Video: Main, 2x Telephoto, and 3x Telephoto
• Second-generation sensor-shift optical image stabilization for the main and 2x telephoto camera
• Action Mode: Yes
• Optical Video Zoom: 0.5x, 1x, 2x, 3x
• Digital Video Zoom: Up to 9x
• Slow-motion video: 1080p at 120 fps or 240 fps
• Audio Zoom: Yes
• QuickTake Video: Yes
• Time-lapse video with stabilization: Yes
• Cinematic video stabilization: 4K, 1080p, and 720p
• Stereo Recording: Yes

Front Camera:

• Camera: 12 MP TrueDepth
• Aperture: f/1.9
• Autofocus: Yes
• Portrait Mode: With advanced bokeh and Depth Control
• Portrait Lighting: With six effects (Natural, Studio, Contour, Stage, Stage Mono, High‑Key Mono)
• Night mode: Yes
• Deep Fusion: Yes
• Photonic Engine: Yes
• Photographic Styles: Yes
• Animoji and Memoji: Yes
• Live Photos: Yes
• Wide color capture: Yes
• Retina Flash: Yes
• Video Recording:
  • 4K at 24 fps, 25 fps, 30 fps, or 60 fps
  • 1080p HD at 25 fps, 30 fps, or 60 fps
  • Slow-motion video: 1080p at 120 fps
  • Extended Dynamic Range Video: 30 fps
  • Dolby Vision HDR Video: 4K at 60 fps
  • ProRes Video: 1080p at 30 fps for 128 GB storage, 4K at 30 fps for 256 GB storage and above
  • HDR for photos: Smart HDR 4
  • Cinematic video stabilization: 4K, 1080p, and 720p
  • Auto Image Stabilization: Yes
• FaceTime: Yes

Audio:

• Playback: Spatial Audio
• Dolby Atmos: Built-in speakers and headphones with Spatial Audio
• 3.5 mm Jack: No
• HAC Rating: M3, T4
• Compatible with Made for iPhone Hearing aids: Yes
• Live Listen: Yes

Materials:

• Front: All models have a black glass front
• Back: Available in various finishes (Silver, Space Black, Gold, Deep Purple) with textured matte glass
• Side: Available in stainless steel sides matching the back color

Power:

• Battery:
  • iPhone 14 Pro Max: 3.86 V, 16.68 W·h (4,323 mA·h)
  • iPhone 14 Pro: 3.87 V, 12.38 W·h (3,200 mA·h)
• Fast Charging: 20 W, up to 50% charge in 30 minutes (20 W adapter sold separately)
• Wireless Charging: MagSafe and Qi wireless charging
• Resistant: IP68 (Maximum depth of 6 meters up to 30 minutes)

Dimensions:

• iPhone 14 Pro Max:
  • Height: 160.7 mm (6.33 inches)
  • Width: 77.6 mm (3.06 inches)
  • Depth: 7.85 mm (0.309 inches)
  • Weight: 240 g (8.5 oz)

Supported Dates:

• Announced Date: September 7, 2022
• Released Date: September 16, 2022
• Discontinued Date: In production
• Unsupported Date: Supported

The iPhone 14 Pro Max 5G is a powerhouse of technology and innovation, offering a stunning display, powerful performance, advanced camera capabilities, and a host of features designed to cater to the needs of even the most demanding users.
